A PC that boots and browses normally can still crash during a game, video export, or long work session. When I investigate an unstable build, I start with monitoring, test each component separately, and save the combined load for last. That is how to test computer hardware stability under load without losing track of what caused a failure.

A passing test increases confidence in your PC. It cannot guarantee that every future game, application, or workload will run without trouble.

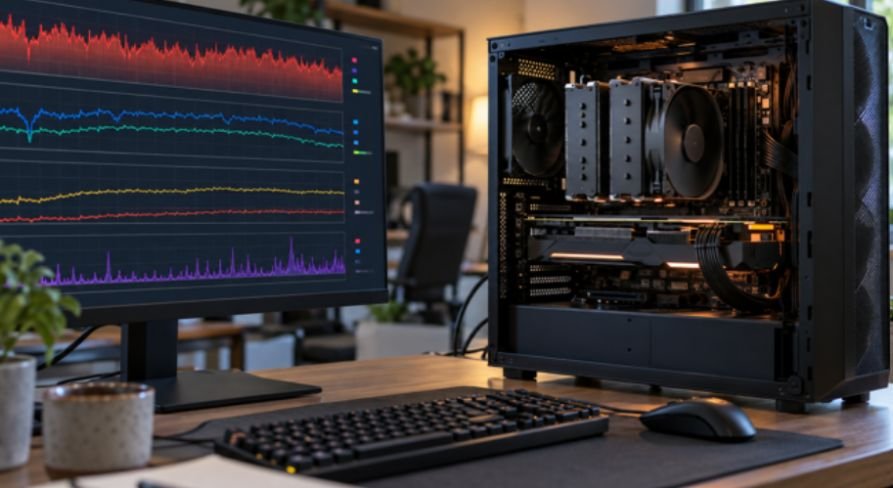

Prepare Your PC and Monitor Its Temperatures

Save your work before testing. Place a desktop where its vents have room to breathe, and confirm that its fans spin. If you recently changed an overclock, memory profile, or power limit, record those settings. You may need to return to the defaults while troubleshooting. If you are building or upgrading the system, best budget motherboards for Intel Core processors can help you review motherboard options before testing.

Open HWiNFO in sensor mode and watch CPU temperature, GPU temperature, clock speeds, and any available throttling indicators. Note the idle readings first. During each test, look for temperatures that climb continuously, clocks that fall sharply, and fans that fail to respond.

There is no universal “safe CPU temperature” or “safe GPU temperature.” Limits depend on the exact model. Intel, for example, says its processors have product-specific maximum junction temperatures. Check your CPU and GPU specifications before treating a number such as 90°C as a pass or fail.

Run CPU and GPU Stress Tests Separately

Separate tests give you a useful baseline. If the CPU test passes but the GPU test crashes, you have a narrower place to start. Keep the monitor visible, and stop a test if the system behaves abnormally.

Check CPU Stability and Cooling

Start with a 10- to 30-minute Cinebench loop or an OCCT CPU test. This is long enough for an initial check of sustained performance and cooling. Watch the CPU temperature and clock speed together: a high temperature matters more when it also triggers sustained throttling or an unexpected shutdown.

For deeper troubleshooting, a Prime95 Small FFTs test creates a demanding CPU workload. Its Blend mode also exercises memory. These tests can produce more heat than your usual applications, so stay nearby during the first run. If the PC fails, return any CPU overclock or undervolt to its default setting and repeat the same test before changing hardware.

Check GPU Stability and Display Behavior

Run a graphics-heavy game you know well or a looping GPU stress test for 15 to 30 minutes. Look for visual artifacts, a black screen, a display-driver reset, or a crash. Watch GPU temperature and clock speed as the card warms up.

A 3DMark stress test offers another useful measure: it repeats a workload and reports how consistent its frame rate remains. Its published pass criterion is completion of all loops with at least 97% frame-rate stability. That score measures performance consistency in that test; it does not certify the entire PC.

These times are practical starting points, not universal proof of stability. Extend a test when you are chasing a failure that normally appears later.

Test RAM Before Blaming the Power Supply

Memory faults can appear as application errors, blue screens, or crashes in unrelated programs. For a thorough check, boot MemTest86 from a USB drive and complete its configured tests. The tool runs outside Windows and reports detected memory errors. One clean run is encouraging; an error needs investigation.

If errors appear, disable your memory overclock or XMP/EXPO profile and test again. Then check that the modules sit firmly in the motherboard’s recommended slots. Testing one module at a time can help isolate a faulty stick or slot.

Do not assume every reported memory error proves the RAM itself is defective; CPU and motherboard problems can also affect a memory test.

This check matters especially for video editing workstations, where long exports can expose errors that short tasks miss.

Try a Combined CPU and GPU Load Last

Once the separate tests pass, run a short, supervised combined test. OCCT’s Power test places heavy load on the CPU and GPU together to increase system power demand. Start with 10 to 15 minutes while watching temperatures. Stop immediately if the PC shuts down, produces errors, or shows signs of overheating.

Here is the diagnostic advantage of the test order: if both separate tests pass but the combined test causes a hard shutdown, shared power delivery or combined heat becomes more suspect. It still does not prove the PSU is faulty. Check power connections, cooling, and default settings before considering a replacement.

If your PC also contains several SATA 3.5 hard drives note their power needs when reviewing the complete build. A CPU and GPU test does not test drive health; use a separate drive-health check for storage concerns.

Read the Result, Then Repeat the Failing Test

A pass means the test completed without reported errors or unexpected behavior at the settings you used. Record the test name, duration, peak temperatures, and result. If something fails, change one variable and run that same test again. Changing several settings at once makes the result hard to interpret.

Thermal throttling is a protective reduction in performance. It deserves investigation when it is sustained or disrupts your work, but a brief temperature spike alone does not identify a bad cooler.

Frequently Asked Questions

1. How long should I stress test a PC?

Start with the short checks above. Run longer tests if the problem takes hours to appear, and record the duration that reproduces it.

2. Can a PC pass a stress test and still crash in games?

Yes. Different games, drivers, and workloads stress different parts of the system.

3. Should I test the CPU and GPU at the same time?

Test them separately first. A combined test is more useful after you have a baseline for each component.

4. What is the safest way to learn how to test computer hardware stability under load?

Monitor temperatures, begin with short runs, stay near the PC, and stop when errors or abnormal behavior appear.

Make Your PC Prove It—One Test at a Time

I trust a sequence of clean results more than one punishing hour-long run. Start with monitoring, check the CPU, GPU, and RAM individually, then try a brief combined load. If a test fails, repeat it after changing one setting. That gives you evidence you can use instead of a crash you can only guess about.

Building or repurposing external storage requires precise hardware alignment. Pairing a bare drive with an incompatible housing leads to physical mismatching or power failure. Mastering form factors, interface protocols, and electrical limits prevents costly mistakes.

1. Drive Form Factor and Physical Dimensions

Matching the physical size of the internal storage media to the enclosure housing is the absolute first step.

• 3.5-inch Enclosures: Built for standard desktop mechanical hard drives (HDDs). These bulky housings require an external AC wall power adapter to supply 12V electricity.
• 2.5-inch Enclosures: Designed for laptop HDDs and SATA solid state drives (SSDs). These slim units run entirely on USB bus power. Drive thickness matters here (7mm vs. 9.5mm); most modern enclosures accommodate both, but specialized enterprise drives can exceed standard tolerances.
• M.2 Enclosures: Compact, pocket-sized casings built specifically for M.2 stick SSDs like 2280 or 2242 formats.

2. Internal Interface Protocols: SATA Versus NVMe

An enclosure acts as a bridge converter, meaning the internal connector must match the logic protocol of the bare drive.

• SATA (I / II / III): Utilized by all 3.5-inch desktop HDDs, mechanical laptop drives, and standard 2.5-inch SSDs. It uses an L-shaped data and power connector block, capping internal throughput around 6 Gbps.
• NVMe (PCIe): Strictly reserved for M.2 NVMe solid-state modules. Traditional 3.5-inch mechanical desktop drives do not utilize NVMe architecture.

When upgrading system memory components or tuning a rig that uses advanced b-series motherboard chipset architecture, matching internal lane speeds ensures your external storage bottleneck remains on the cable rather than the motherboard controller.

3. External Interfaces and Host Connection Speeds

The external cable and port dictate how fast data travels between the storage enclosure and your computer system.

• USB 3.0 / USB 3.2 Gen 1: Transfers up to 5 Gbps. This matches mechanical hard drive maximum speeds perfectly, as disk rotation limits throughput long before the USB connection saturates.
• USB 3.2 Gen 2 / Gen 2×2: Reaches 10 Gbps or 20 Gbps. This bandwidth tier is required only when housing fast 2.5-inch SATA SSDs or high-speed M.2 NVMe drives.
• Thunderbolt 4 / USB4: Reaches up to 40 Gbps. While overkill for standard desktop HDDs, it provides optimal performance for heavy creative video editing workflows and professional workstation backups.

Power delivery is equally important when pushing high throughput. Just as high-performance computing requires graphics cards with best power efficiency ratings to maintain thermal stability under load, high-speed storage enclosures require robust power delivery components to prevent thermal throttling and disconnects during long file transfers.

4. Critical Performance and Thermal Features

Choosing a housing based purely on size and port type often leads to long-term hardware failure if thermal and capacity limits are ignored.

• UASP Support: Prioritize models featuring USB Attached SCSI Protocol (UASP). It drastically improves small file handling efficiency and lowers host CPU strain.
• Enclosure Material: Desktop HDDs generate significant operating heat. Aluminum enclosures act as passive heatsinks, drawing damaging thermal energy away from internal electronics far better than plastic models.
• Capacity Support Limits: Budget controllers often cap out at 4TB or 6TB drive limits. When recycling massive 12TB–20TB high-capacity drives, verify the specific controller firmware explicitly supports modern high-capacity formatting.

Frequently Asked Questions

1. Can I put an M.2 NVMe SSD into a SATA enclosure?

No, the physical pin layout and logic protocols are entirely different.

2. Do 3.5-inch enclosures run on USB power alone?

No, 3.5-inch mechanical drives require an external AC wall adapter for 12V power.

3. What is UASP and why does it matter?

UASP is a protocol that enhances data transfer efficiency over USB, reducing latency and CPU overhead.

4. Can a large 16TB hard drive work in an older enclosure?

Often no, because older enclosure bridge controllers have built-in capacity limits below 8TB.

Conclusion: Don’t Let Your Data Choke on Bad Hardware

Picking an enclosure isn’t just about plugging a drive into a box—it’s about matching electrical realities to mechanical specs. Avoid penny-pinching on cheap plastic housings that trap heat and throttle your data throughput. Double-check your pin layouts, verify your power adapters, and treat your storage upgrades right.

A workstation can finish a long render and still deliver a damaged file. It can also run flawlessly for years without ECC memory. When I weigh ecc vs non ecc memory for workstation builds, I start with the cost of an incorrect result, then check what the processor and motherboard actually support.

ECC memory detects and corrects certain memory errors as data moves through the system. Non-ECC memory offers a broader choice of mainstream parts and often costs less. Neither label tells you how fast the finished workstation will be.

ECC vs Non-ECC Memory at a Glance

An error may cause a crash, produce an incorrect result, or have no visible effect. ECC reduces specific memory error risks; it does not prevent every crash or replace backups.

How ECC Protects Workstation Data

What happens when a memory error occurs?

A bit stored in RAM can change unexpectedly. With supported ECC hardware, the system can correct a single-bit error before the affected data reaches an application. It can also identify certain errors it cannot correct, allowing the system to report or stop rather than silently continue.

Without that protection, an error might surface as an app freeze or a Windows blue screen. The harder case is a wrong value that goes unnoticed in a calculation or file. How often this matters depends on the system, its operating conditions, and the work it performs.

DDR5 on-die ECC is not workstation ECC

Consumer DDR5 commonly includes on-die ECC. That feature corrects certain errors inside the memory chip. It does not give an ordinary non-ECC module the same system-level protection as an ECC DIMM. Micron describes on-die ECC as a DDR5 reliability feature that complements other error-protection measures.

A listing that says “DDR5 with on-die ECC” therefore needs a second look. Check whether the module itself is specified as an ECC UDIMM or RDIMM and whether the entire platform enables ECC.

Workstation RAM Compatibility: Check the Whole Platform

The processor, motherboard, BIOS, and memory type must agree. An AMD Ryzen 9 9950X, for example, lists ECC support with motherboard support required. That makes the board’s specifications and memory compatibility list essential reading.

Professional platforms have their own rules. Intel says its Xeon W-2500 and W-3500 processors support ECC RDIMMs and 3DS RDIMMs. That does not mean a cheaper ECC UDIMM will work in the same build. intel.com and Kingston also note that DDR5 UDIMMs and RDIMMs cannot be swapped into each other’s sockets.

Before ordering, I would check the CPU’s memory specification, the board’s supported module type, its qualified memory list, and the supported speed at the planned capacity. I would then confirm that ECC operation can be enabled and checked in the system. A DIMM merely fitting the slot is not proof that error correction is active.

If you are comparing mainstream kits first, our article on ddr5 ram for gaming pc builds explains capacity and speed choices.

For large projects, pair the RAM decision with suitable NVMe M. 2 SSD storage and a reliable backup plan. Verify those internal URLs against your published slugs before posting.

Does ECC RAM Slow Down a Workstation?

There is no reliable universal “ECC costs 1–2% performance” rule. An ECC calculation is only one part of performance. Processor choice, memory channels, module speed, timings, and capacity can matter more.

Consider a video editor choosing between a smaller ECC configuration and enough non-ECC RAM to keep an entire project in memory. If the smaller setup repeatedly uses disk space as overflow, extra capacity could make the non-ECC machine feel much faster. That is a capacity comparison, not evidence that ECC itself is slow.

Now consider a scientific job that runs for 36 hours and must be restarted after an error. Even a small change in render or calculation speed matters less than avoiding a failed run. This is the useful comparison: What costs more in your workflow—slower completion, an interrupted job, or an incorrect output?

For either choice, test the finished system at its intended memory settings. Aggressive memory overclocking can undermine the stability you bought the workstation to achieve.

Which Memory Makes Sense for Your Work?

Choose ECC when errors carry a high cost

I would favor ECC for lengthy simulations, local databases, financial records, critical code builds, and unattended rendering jobs. It is especially attractive when the workstation already uses a platform designed around ECC and needs substantial memory capacity.

ECC can also help teams investigate failures because supported systems may log correctable errors. A rising error count deserves attention even if applications appear to run normally.

Choose non-ECC when capacity and budget come first

A well-configured non-ECC system can be a sensible choice for video editing, audio production, everyday CAD work, and general software development. The money saved may buy more RAM, a stronger GPU, or faster storage. Those upgrades can improve daily work more than ECC would on a workload with limited error-related risk.

Do not treat “non-ECC” as permission to skip reliability basics. Use compatible memory, keep the system adequately cooled, test it after assembly, and back up work that would be costly to recreate.

Frequently Asked Questions

1. Can a Ryzen workstation use ECC memory?

Some Ryzen processors support ECC, but operation also depends on the motherboard and its firmware; check the exact components.

2. Is DDR5 on-die ECC enough for professional work?

It protects against certain errors inside DDR5 chips, but it does not replace supported system-level ECC memory.

3. Can I mix ECC UDIMMs and RDIMMs?

No. Buy the module type specified for your processor and motherboard.

4. Is ECC always better for a video editing workstation?

No. If ECC forces you below the RAM capacity your projects need, adequate capacity may be the better first purchase.

The Smart Build Starts With the Workload

I would choose ECC vs. non-ECC memory for workstation builds by pricing the consequence of a failed or incorrect job, then confirming the exact hardware configuration. If a lost run or corrupted result would be expensive, put ECC on the shortlist. If memory capacity is the immediate bottleneck, solve that first. Check the CPU and motherboard memory lists before buying either kit.

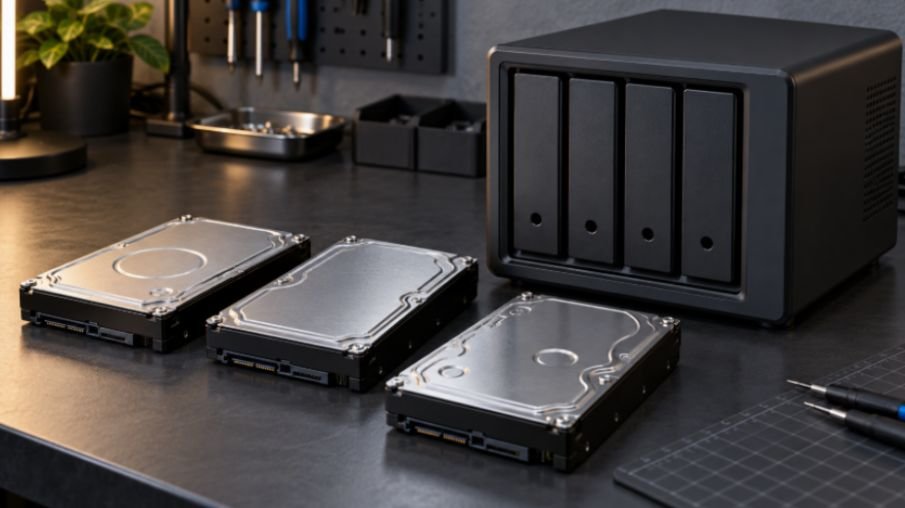

A NAS drive can look like an easy purchase until you compare two models with the same capacity and different intended workloads. When I weigh sata 3.5 hard drives for nas storage servers, I start with the enclosure, the number of users, and the noise I can tolerate. A faster drive has little appeal if it sits beside my desk and spends most of its day serving photos.

WD Red Plus, Seagate IronWolf, and Toshiba N300 are three useful starting points for a home or small-office NAS. Each is built for continuous operation, but their exact speeds and features vary by model number. I would choose the capacity first, then check the manufacturer’s specification sheet for that specific drive.

What makes a 3.5-inch SATA drive suitable for a NAS?

A NAS may run day and night, with several drives operating close together. That changes what I look for beyond capacity and price.

Conventional magnetic recording, or CMR, is a sensible choice for an array that may need sustained writes or a rebuild. RAID-oriented error recovery helps a drive report a problem promptly so the NAS can handle it.

Vibration management matters more as the number of spinning drives grows. These features do not make a drive immune to failure; they make its behavior better suited to the enclosure. WD, Seagate, and Toshiba describe NAS-specific controls across the drive lines compared below.

I also check the rated annual workload. It measures data transferred to and from the drive, not the amount stored on it. WD Red Plus, IronWolf, and N300 carry ratings of up to 180 TB per year in the cited product information.

A busy editing team may need a different class of drive than a household that streams films and backs up laptops. For related hardware performance considerations, see DDR4 vs. DDR5 RAM performance in modern games.

A busy editing team may need a different class of drive than a household that streams films and backs up laptops.

When comparing hardware for a new setup, understanding PCIe 4.0 vs PCIe 5.0 graphics card bottleneck analysis can also help clarify how interface limitations affect component performance.

WD Red Plus vs. IronWolf vs. N300: which fits your server?

The table describes drive families, not a promise that every capacity has identical hardware. Compare the exact part numbers available from a US retailer before ordering.

WD Red Plus for a quieter home NAS

WD Red Plus is where I would begin for a NAS that serves backups, family files, and media. Its CMR recording and RAID-oriented design address the core requirements without making maximum spindle speed the deciding factor.

WD rates the line for systems with up to eight bays and provides a three-year limited warranty. Check the selected capacity’s speed and power figures if the NAS will live in a bedroom or office.

Seagate IronWolf for a shared file server

IronWolf deserves a close look when several people use the NAS. Seagate offers IronWolf Health Management on supported NAS systems and lists three years of complimentary Rescue Data Recovery Services for current IronWolf drives.

 I would still keep a separate backup: a recovery service has eligibility terms and cannot replace a copy I can restore myself. Confirm the spindle speed and service coverage for the exact model and seller.

Toshiba N300 for frequent large transfers

N300 is a strong candidate when the NAS routinely moves large project files or runs multiple backup jobs. Toshiba lists 7,200 rpm operation, rotational-vibration sensors, error recovery controls, and a workload rating of up to 180 TB per year.

The trade-off I would investigate is sound and power use in the intended enclosure; I would not infer either from spindle speed alone. Toshiba also lists a three-year warranty.

How much NAS hard drive capacity should you buy?

I calculate usable space before comparing cost per terabyte. Suppose I need about 12 TB for files today and want room for growth. Two 12 TB drives in a mirrored array provide roughly one drive’s capacity before formatting and system overhead. The second drive holds redundant data; it does not double usable space.

That example changes the shopping question. I need to price two compatible 12 TB drives, then budget for a separate backup.

Suppose I need about 12 TB for files today and want room for growth. For users working with video editing workstations, storage requirements can grow much faster depending on project files and media.

Mirroring can keep a NAS available after one drive fails, but it can also mirror accidental deletion or corrupted files. If I expect much faster growth, I would compare a larger enclosure and its supported array layouts before buying the drives.

Capacity is only one limit. I check the NAS maker’s maximum supported drive size, its compatibility list, and any model-specific requirements. Synology, for example, publishes compatibility results by NAS model and drive model. An unlisted drive may work, but its support position can differ.

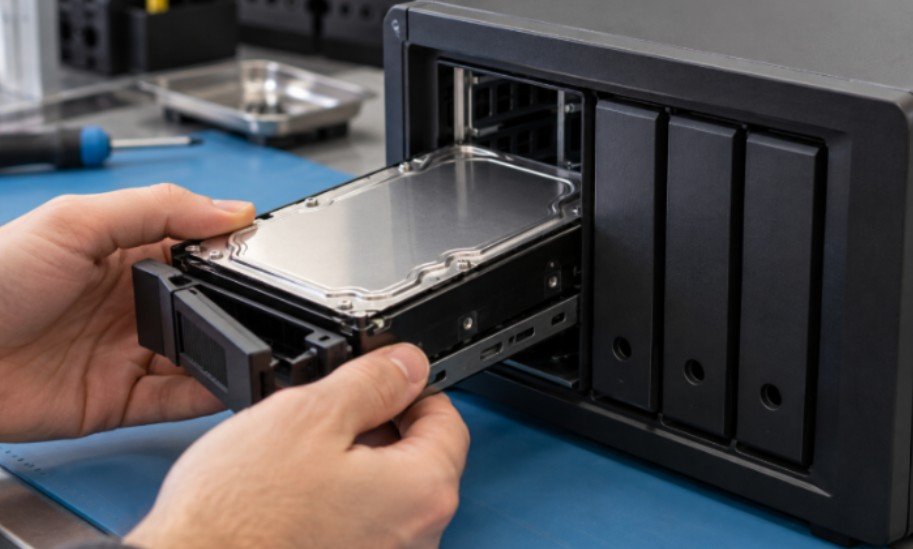

When should you move to a Pro NAS drive?

For a large array or sustained heavy transfers, I would compare Pro models instead of assuming a standard NAS drive has enough headroom. WD describes Red Pro as supporting unlimited bay configurations and workloads up to 550 TB per year.

Seagate lists up to 550 TB per year and a five-year limited warranty for IronWolf Pro. Those are reasons to inspect a Pro model’s full specifications, not reasons to pay more for a lightly used two-bay box.

If the drive will sit in a separate desktop enclosure, I would also check its power, physical fit, and interface. Our [hard drive enclosure compatibility](/external-desktop-hard-drive-enclosure-compatibility-guide/) guide covers that purchase decision.

Frequently asked questions

1. Are desktop SATA drives suitable for a RAID NAS?

They may operate in one, but I would check the NAS compatibility list and choose drives rated for the intended array and workload.

2. Is CMR better than SMR for a NAS rebuild?

CMR is the safer default when predictable sustained writes and rebuild behavior matter; verify the exact model’s recording technology.

3. Are 7,200 rpm NAS drives always better?

No. Faster spinning may help some transfers, while noise, power use, network speed, and price can matter more in a home NAS.

4. Does a two-drive NAS replace a backup?

No. Redundancy helps with a drive failure; a separate backup protects against deletion, corruption, theft, and other losses.

Buy the drive your NAS can actually use

I would pick sata 3.5 hard drives for nas storage servers by working backward from the NAS model and workload. For a modest home setup, I would compare WD Red Plus and IronWolf at the required capacity. For frequent large transfers, I would add N300 to the shortlist.

Before checkout, I would verify the exact model number on the NAS compatibility list and price enough drives for the usable capacity I need.
